Stainless 2MM Galvanized Steel Grating 240 * 4020MM / Anti Slip Tread Plates
Anti Slip Tread Introduction:
Crocodile mouth hole antiskid plate suitable for sewage treatment,water supply,power plant and other industrial outdoor,anti-skid pedal,the vehicle train ladder,ladder step plate is also used for the anti-skid and interior slip.
The new type of factories and enterprises growing,people's safety consciousness is more and more high,a lot of factories for the company members pay work-related injury insurance premiums to avoid direct cause accident economic loss,but also can not effectively avoid work in the personnel injury rate,alligator cleat high antiskid effect,weight high,strong resistance to pressure the application,it reduces the damage,guarantee the safety of operation workshop.
Product name | Anti Slip Tread |
Material | Stainless Steel |
Thickness | 2mm |
Height | 50mm |
Width | 240mm |
Length | 4020mm |
Fold Back | 25mm |
Application | stair tread |
Color | Silver |
Hole Type | Diamond |
Anti Slip Tread Standards:
Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Anti Slip Tread Specification:
Name | Anti Slip Tread |
Application | Catwalks, stair tread, vehicle steps, work platforms Etc |
Material | Carbon steel, zinc plate, aluminum plate | stainless steel |
Thickness | 2.0MM,2.5MM,3.0MM,3.5MM,4.0MM,4.5MM,5.0MM,5.5MM,6.0MM | 1.5MM,2.0MM,2.5MM,3.0MM |
Size | Width | Customized |
Length | Customized |
Height | 30MM,40MM,50MM,75MM,115MM ETC |
Fold back | 15MM,18MM,20MM,25MM,30MM ETC |
Surface treatment | Base on requirement |
2 Diamond / 9-1/4" Width |
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
3 Diamond / 13-3/4" Width |
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
5 Diamond / 23-1/4" Width |
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
6 Diamond / 27-3/4" Width |
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
8 Diamond / 36" Width |
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
Anti Slip Tread Feature:
1, low cost, zinc plate is cheaper compare to after hot dipped galvanized
2, easy install, but need think about carrying capacity
3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.
4, low maintain cost.
Anti Slip Tread Packing & Shipping:
Packaging Details: Pallet or with plastic film inside of art product anti slip tread
Delivery Time: Within 15 days upon receipt your advance payment

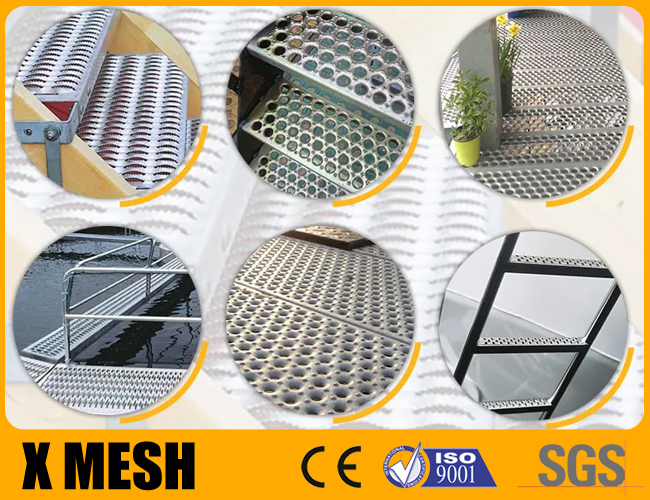

Anti Slip Tread Application:
Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.
